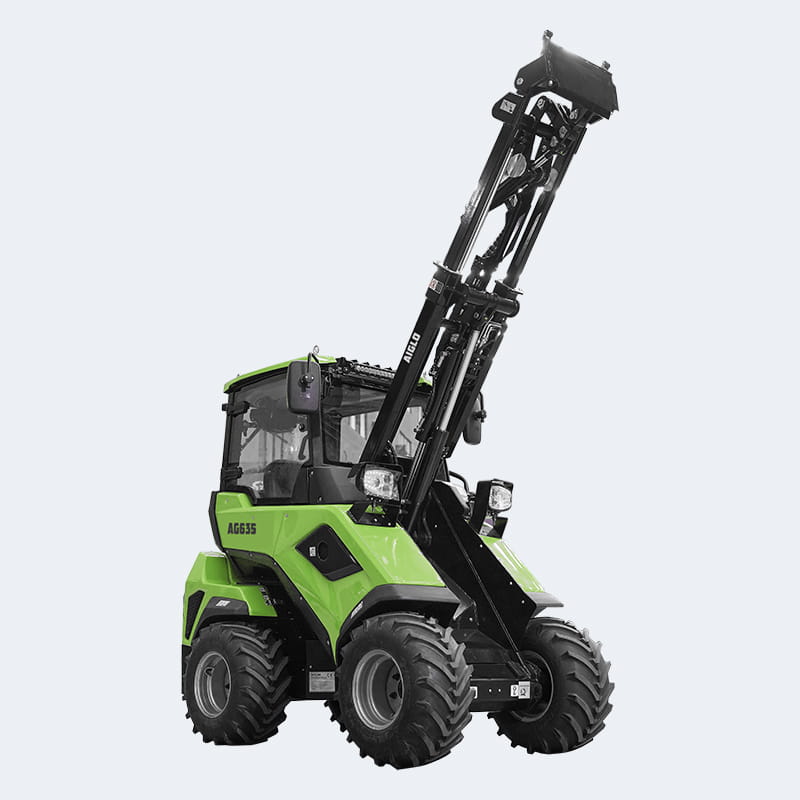

Telescopic Articulated Wheel Loader
AG635

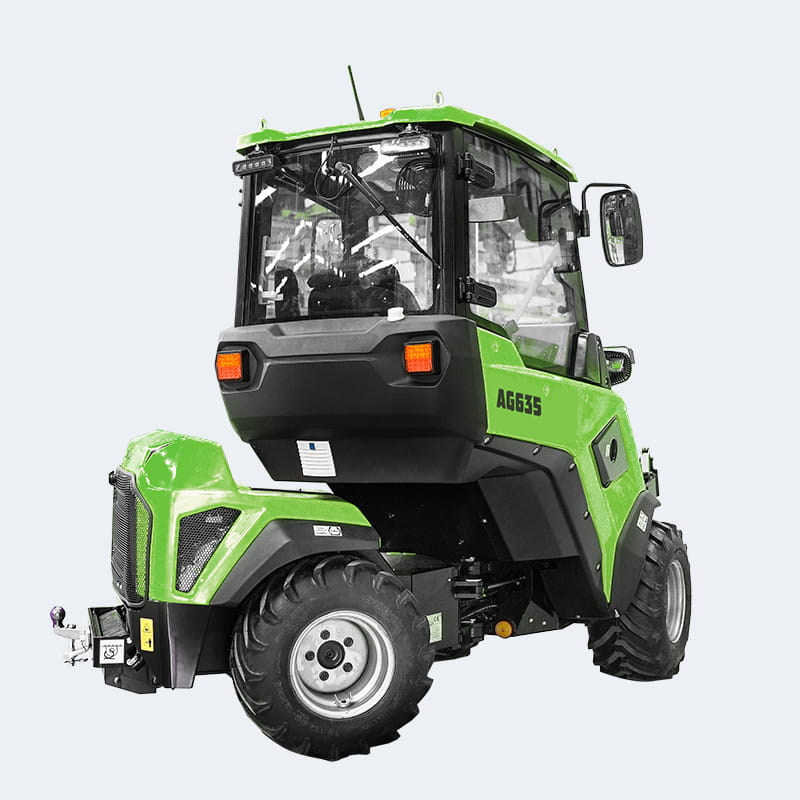

- Central articulation joint structure allows more tighter turning radius.

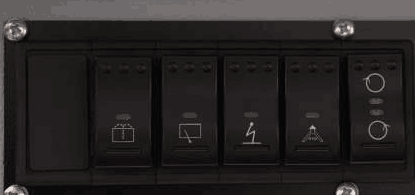

- Dual-pump flow sharing delivers high hydraulic flow for heavy attachments.

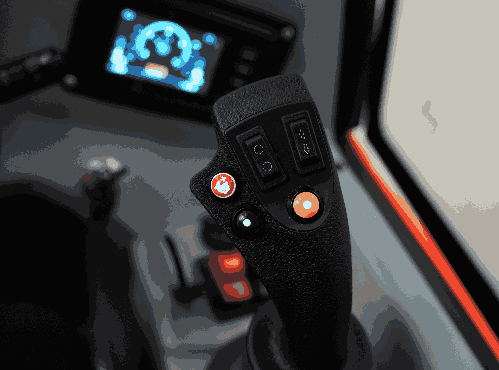

- The premium electric joystick provides easy and smooth control.

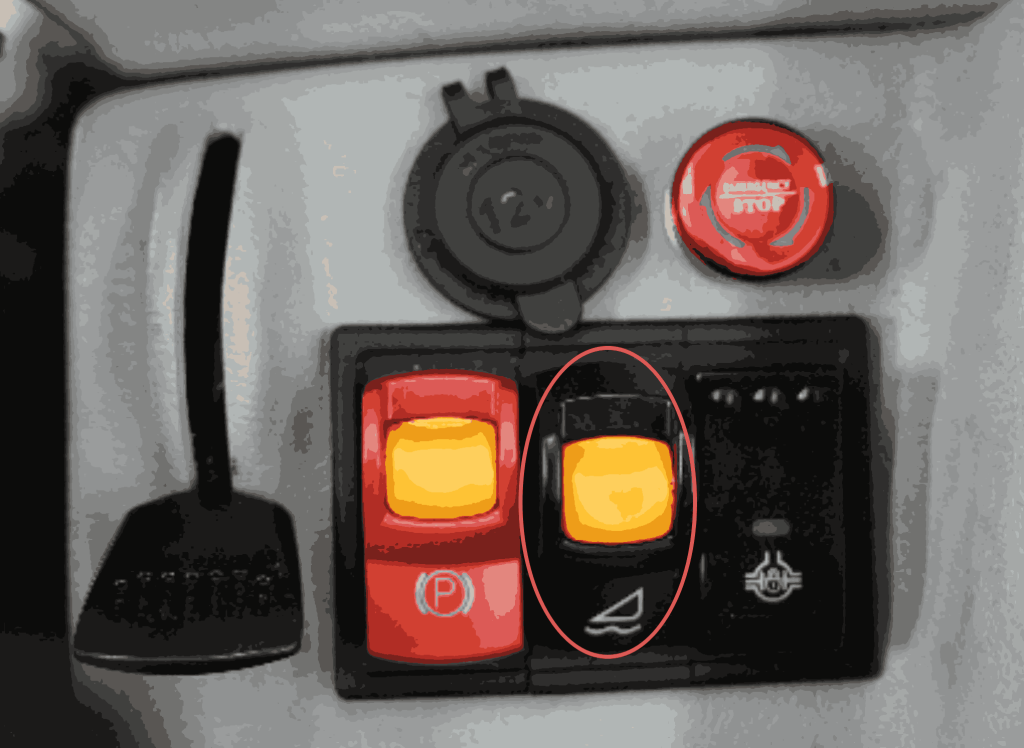

- Electric floating function minimizes ground damage and extends the service life.
- Electric hand brake system automatically engages when the machine is turned off and requires less maintenance.
Specifications
| Max. Loading Capacity (Tipping Load) | 1,200 kg |
| Net Weight w/o Worktool | 1,660 kg |
| Overall Dimension (L x W x H) w/o Shovel | 2630 x 1250 x 2000 mm |
| Max. Lifting Height of Shovel Pivot Pin | 3,060 mm |
| Wheelbase | 1,312 mm |
| Min. Turning Radius(Outside) | 2,050 mm |
| Engine Model | Kubota D1105-E4B-CWL-1 |
| Displacement | 1,123 ccm |
| Engine Power | 18.2 kW(24.8 hp) |
| Rated Speed | 3,000 r/min |
| Type of Coolant | Water Cooling |
| Number of Cylinders | 3 |
| Transmission Type | Hydrostatic |
| Gear Shift | Electric |
| Max. Driving Speed | 21 km/h |
| Drive Pump Rated Pressure | 320 bar |
| Working Pump Rated Flow | 50 L/min |
| Working Pump Rated Pressure | 18 bar |
| Steering Type | Articulated Steering |
| No. of Steering Cylinder | 2 |
| Max. Turning Angle | 50° |

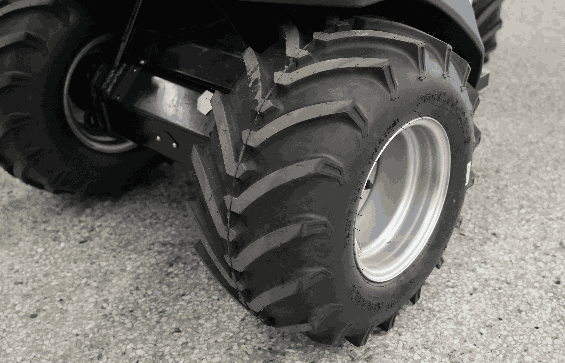

| Service Brake | Hydrostatic Brake |
| Parking Brake | Electric Parking Brake |
| Tire Size | 26x12-12 |
Product specifications are subject to change without notice. Standard and optional equipment may vary.
